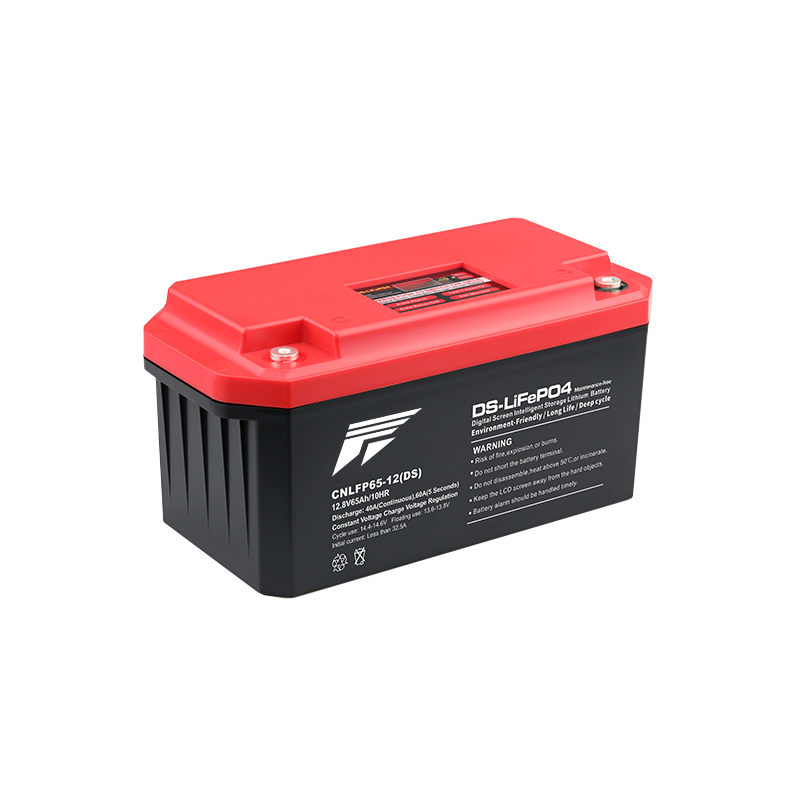

LiFePO4 Lithium-ion Energy Storage Battery

Category: Lithium-ion Battery

No：

E03001

-- 12v, 24v, 48v, 96v (3-205ah) -- Application fields: power, communication, hospital, mine, bank ATM, database, machine room, machine station, emergency light, UPS backup power supply, etc. Mainly used in harsh environment, remote, unattended base station power supply, communication and other fields. Can be recycled 3000-5000 times.

Consult Back

Product Description
Model Specification

- Commodity name: LiFePO4 Lithium-ion Energy Storage Battery
- Commodity ID: E03001
-- 12v, 24v, 48v, 96v (3-205ah) -- Application fields: power, communication, hospital, mine, bank ATM, database, machine room, machine station, emergency light, UPS backup power supply, etc. Mainly used in harsh environment, remote, unattended base station power supply, communication and other fields. Can be recycled 3000-5000 times.

Xinfu tech

Energy Storage Lithium Battery

CHARACTERISTIC

1.Adoption of LiFePO4 cell— features Environmental-friendliness, Long service life, deep discharge, light weight, high security.

2.Fast charge and big current discharge—50A to charge, 120A to continuously discharge, 180A to peak discharge.

3.The high-waterproof design—above IP66, meets the use at harsh environment.

4. Easy to use and maintain— can be installed in any direction, maintenance free.

With LiFePO4 cell, the battery performance is

more superior.

1.Eco-friendly, non-corrosive liquid, no harmful heavy metals.

2.Longer service life, twice than that of lead-acid battery.

3.Deep discharge, 100% deeply discharge.

4.Lighter weight, only one-half that of lead acid battery.

5. High safety, LiFeP04 cell material is superiorly stable.

Safe Use Precautions

Safe Precautions

1.Do not dismantle for repair or modification, which may cause the system failure leading to the unusable battery.

2.Do not short-circuit the positive and negative poles of the system or system groups, otherwise it will cause an electric shock, a fire or the malfunction.

3. Please firmly connect to the bolt part of the terminal, if loose, which may bring about a fire.

4.Do not let the battery be contaminated with oil, water or other chemicals, otherwise there will be an electric shock, a fire, or the malfunction.

5.Be sure to cut off the main power when installing the connection, or there is a risk of electric shocks.

6.Do not connect to a power supply other than the rated voltage, otherwise there will be a fire or the malfunction.

7.Do not use the system directly as AC power, otherwise it may cause a fire, a fault, or the damage.

8.Do not place the system near fire or heat, so as not to cause an explosion.

9.Charging process will produce the trace gas, when using the battery, please pay attention to ventilation and heat dissipation as well as Maintain it in the ventilation conditions.

Precautions for Use

1.Do not store and use the battery in the following cases, otherwise it will cause a fault, the shell crack, the leakage and so on.

1.1.Places below-40°C or above + 50°C.

1.2.Outdoor and other places where directly exposed to rain or sunshine.

1.3.Foggy or icy places

1.4.Locations with corrosive gases.

1.5.Relatively humid or dusty places

1.6.Occurrence of shock or impact.

1.7.It should be stored in a cool, dry, clean environment.

2.LCD screen maintenance

2.1.Avoid hard objects to pressure the control panel.

2.2.Keep the screen clean and dry.

2.3.Check the system display frequently.

2.4.Be aware of the buzzer alarm.

2.5.Handle timely when the buzzer alarms.
Key words:
- energy storage battery
- lithium ion battery
- lithium battery
- lifepo4 battery
- lithium energy storage battery

LiFePO4 Lithium-ion Energy Storage Battery Products Catalogue
No.	Series	Model	Voltage (V)	Capacity （Ah）	Watt	Terminal	Polarity	Dimension (inch)	Weight(KG)
001	Cylindrical cell	CNLFP4-6	6.4	4	25.6	F1	+ -	4848102	0.38
002	Cylindrical cell	CNHLFP7-12	12.8	7	76.8	F2	+ -	1516494	1.40
003	Cylindrical cell	CNHLFP10-12	12.8	10	115.2	F2	+ -	1516494	2.00
004	Cylindrical cell	CNLFP3-12	12.8	3	38.4	F1	+ -	1516494	0.53
005	Cylindrical cell	CNLFP4-12	12.8	4	51.2	F1	+ -	1516494	0.57
006	Cylindrical cell	CNLFP5-12	12.8	5	70.4	F1	+ -	9070102	0.73
007	Cylindrical cell	CNLFP6-12	12.8	6	76.8	F2	+ -	1516494	0.80
008	Cylindrical cell	CNLFP8-12	12.8	8	102.4	F2	+ -	1516494	0.86
009	Cylindrical cell	CNLFP10-12	12.8	10	128	F2	+ -	1516494	1.2
010	Cylindrical cell	CNLFP12-12	12.8	12	153.6	LC1	+ -	151100100	1.6
011	Cylindrical cell	CNLFP20-12	12.8	20	281.6	LC1	+ -	18078170	2.9
012	Cylindrical cell	CNLFP24-12	12.8	24	307.2	LC2	+ -	166174125	3.0
013	Cylindrical cell	CNLFP30-12	12.8	24	384	LC2	+ -	166174125	3.6
014	Cylindrical cell	CNLFP38-12	12.8	38	519.68	LC3	+ -	197165172	4.9
015	Cylindrical cell	CNLFP50-12	12.8	50	691.2	LC4	+ -	229138208	6.9
016	Cylindrical cell	CNLFP60-12	12.8	60	768	LC4	+ -	357166173	7.5
017	Cylindrical cell	CNLFP65-12	12.8	65	844.8	LC4	+ -	357166173	7.8
018	Cylindrical cell	CNLFP75-12	12.8	75	998.4	LC4	+ -	357166173	9.3
019	Cylindrical cell	CNLFP80-12	12.8	80	1075.2	LC4	+ -	260168209	9.9
020	Cylindrical cell	CNLFP100-12	12.8	100	1305.6	LC4	+ -	331173220	11.7
021	Cylindrical cell	CNLFP120-12	12.8	120	1536	LC4	+ -	331173220	13.8
022	Cylindrical cell	CNLFP150-12	12.8	150	1958.4	LC4	+ -	484170241	17.9
023	Cylindrical cell	CNLFP200-12	12.8	200	2624	LC4	+ -	484170241	23.0
024	Cylindrical cell	CNLFP50-24	25.6	50	1336.32	LC4	+ -	331173220	11.3
025	Cylindrical cell	CNLFP100-24	25.6	100	2560	LC4	+ -	484170241	22.1
026	Cylindrical cell	CNLFP120-24	25.6	100	3072	LC4	+ -	522240218	26.3
027	Cylindrical cell（DS）	CNLFP4-12(DS)	12.8	4	51.2	F1	+ -	1516494	0.6
028	Cylindrical cell（DS）	CNLFP5-12(DS)	12.8	5	64	F1	+ -	9070102	0.7
029	Cylindrical cell（DS）	CNLFP6-12(DS)	12.8	6	76.8	F2	+ -	1516494	0.8
030	Cylindrical cell（DS）	CNLFP8-12(DS)	12.8	8	102.4	F2	+ -	1516494	0.9
031	Cylindrical cell（DS）	CNLFP10-12(DS)	12.8	10	128	F2	+ -	1516494	1.2
032	Cylindrical cell（DS）	CNLFP12-12(DS)	12.8	12	153.6	LC1	+ -	151100100	1.6
033	Cylindrical cell（DS）	CNLFP20-12(DS)	12.8	20	281.6	LC1	+ -	18078170	2.9
034	Cylindrical cell（DS）	CNLFP24-12(DS)	12.8	24	307.2	LC2	+ -	174166125	3.0
035	Cylindrical cell（DS）	CNLFP30-12(DS)	12.8	24	384	LC2	+ -	166174125	3.6
036	Cylindrical cell（DS）	CNLFP38-12(DS)	12.8	38	519.68	LC3	+ -	197165172	4.9
037	Cylindrical cell（DS）	CNLFP60-12(DS)	12.8	60	768	LC4	+ -	357166173	7.3
038	Cylindrical cell（DS）	CNLFP65-12(DS)	12.8	65	844.8	LC4	+ -	357166173	7.8
039	Cylindrical cell（DS）	CNLFP75-12(DS)	12.8	75	998.4	LC4	+ -	357166173	9.3
040	Cylindrical cell（DS）	CNLFP80-12(DS)	12.8	80	1075.2	LC4	+ -	331173220	9.9
041	Cylindrical cell（DS）	CNLFP100-12(DS)	12.8	100	1305.6	LC4	+ -	331173220	11.3
042	Cylindrical cell（DS）	CNLFP120-12(DS)	12.8	120	1536	LC4	+ -	331173220	13.8
043	Cylindrical cell（DS）	CNLFP150-12(DS)	12.8	150	1958.4	LC4	+ -	484170241	17.9
044	Cylindrical cell（DS）	CNLFP200-12(DS)	12.8	200	2624	LC4	+ -	484170241	22.2
045	Cylindrical cell（DS）	CNLFP50-24(DS)	25.6	50	1228.8	LC4	+ -	331173220	11.3
046	Cylindrical cell（DS）	CNLFP100-24(DS)	25.6	100	2560	LC4	+ -	484170241	22.1
047	Cylindrical cell（DS）	CNLFP120-24(DS)	25.6	100	3072	LC4	+ -	522240218	26.3
048	Square aluminum shell cell（DS）	CNLFP50-12(DS)-F	12.8	50	640	LC3	+ -	197165172	5.7
049	Square aluminum shell cell（DS）	CNLFP55-12(DS)-F	12.8	55	691.2	LC3	+ -	229138208	6.3
050	Square aluminum shell cell（DS）	CNLFP60-12(DS)-F	12.8	60	806.4	LC4	+ -	357166173	6.5
051	Square aluminum shell cell（DS）	CNLFP75-12(DS)-F	12.8	75	1024	LC4	+ -	357166173	7.7
052	Square aluminum shell cell（DS）	CNLFP100-12(DS)-F	12.8	100	1280	LC4	+ -	331173220	11.2
053	Square aluminum shell cell（DS）	CNLFP100-12(DS)-F/B	12.8	100	1280	LC4	+ -	260168209	11.2
054	Square aluminum shell cell（DS）	CNLFP120-12(DS)-F	12.8	120	1612.8	LC4	+ -	331173220	12.8
055	Square aluminum shell cell（DS）	CNLFP150-12(DS)-F	12.8	150	1920	LC4	+ -	484170241	14.3
056	Square aluminum shell cell（DS）	CNLFP200-12(DS)-F	12.8	200	2624	LC4	+ -	484170241/331173220	19.3
057	Square aluminum shell cell（DS）	CNLFP200-12(DS)-F/B	12.8	200	2560	LC4	+ -	484170241	19.3
058	Square aluminum shell cell	CNLFP100-24-F	25.6	100	2560	LC5	+ -	532207215	20.5
059	Square aluminum shell cell	CNLFP120-24-F	25.6	120	3072	LC5	+ -	532207215	22.0
060	Square aluminum shell cell	CNLFP150-24-F	25.6	150	3840	LC5	- +	522240222	30.5
061	Square aluminum shell cell	CNLFP100-38.4-F	38.4	100	3840	LC5	+ -	525400210	29.8
