- Product Description
- Model Specification
-
- Commodity name: LiFePO4 Lithium-Ion Solar Battery
- Commodity ID: S02001
——12v.24v.48v.96v(100-250ah)——Mainly used in solar energy, wind energy and other high-frequency charge and discharge cycle. Can cycle 3000-5000 times.
Xinfu tech

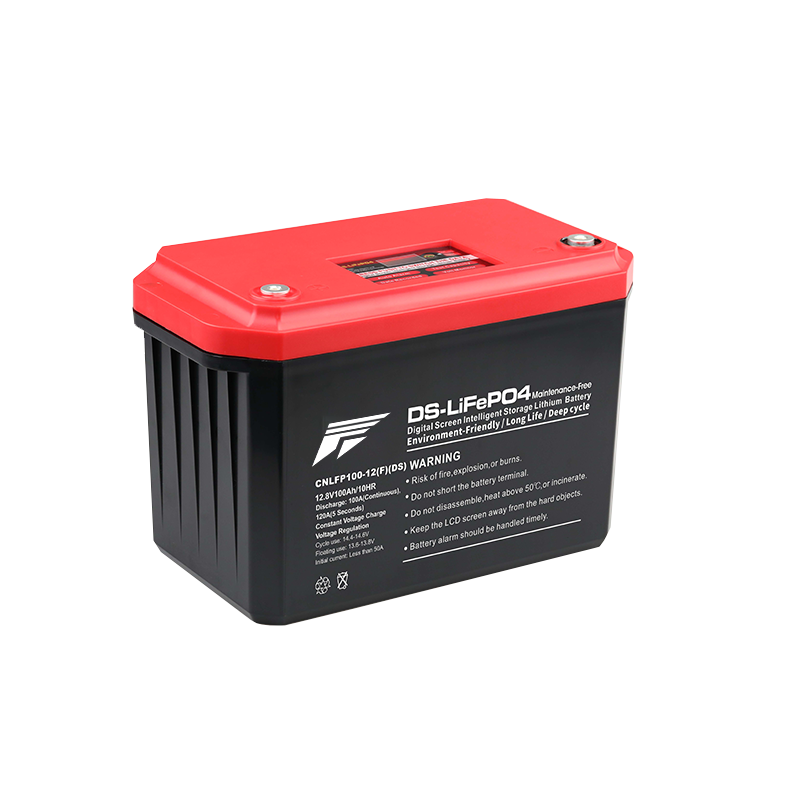

LiFePO4 Lithium-Ion Solar Battery
CHARACTERISTIC
1.Adoption of LiFePO4 cell— features Environmental-friendliness, Long service life, deep discharge, light weight, high security.
2.Fast charge and big current discharge—50A to charge, 120A to continuously discharge, 180A to peak discharge.
3.The high-waterproof design—above IP66, meets the use at harsh environment.
4. Easy to use and maintain— can be installed in any direction, maintenance free.
With LiFePO4 cell, the battery performance is
more superior.
1.Eco-friendly, non-corrosive liquid, no harmful heavy metals.
2.Longer service life, twice than that of lead-acid battery.
3.Deep discharge, 100% deeply discharge.
4.Lighter weight, only one-half that of lead acid battery.
5. High safety, LiFeP04 cell material is superiorly stable.Safe Use Precautions
Safe Precautions
1.Do not dismantle for repair or modification, which may cause the system failure leading to the unusable battery.
2.Do not short-circuit the positive and negative poles of the system or system groups, otherwise it will cause an electric shock, a fire or the malfunction.
3. Please firmly connect to the bolt part of the terminal, if loose, which may bring about a fire.
4.Do not let the battery be contaminated with oil, water or other chemicals, otherwise there will be an electric shock, a fire, or the malfunction.
5.Be sure to cut off the main power when installing the connection, or there is a risk of electric shocks.
6.Do not connect to a power supply other than the rated voltage, otherwise there will be a fire or the malfunction.
7.Do not use the system directly as AC power, otherwise it may cause a fire, a fault, or the damage.
8.Do not place the system near fire or heat, so as not to cause an explosion.
9.Charging process will produce the trace gas, when using the battery, please pay attention to ventilation and heat dissipation as well as Maintain it in the ventilation conditions.
Precautions for Use
1.Do not store and use the battery in the following cases, otherwise it will cause a fault, the shell crack, the leakage and so on.
1.1.Places below-40°C or above + 50°C.
1.2.Outdoor and other places where directly exposed to rain or sunshine.
1.3.Foggy or icy places
1.4.Locations with corrosive gases.
1.5.Relatively humid or dusty places
1.6.Occurrence of shock or impact.
1.7.It should be stored in a cool, dry, clean environment.
2.LCD screen maintenance
2.1.Avoid hard objects to pressure the control panel.
2.2.Keep the screen clean and dry.
2.3.Check the system display frequently.
2.4.Be aware of the buzzer alarm.
2.5.Handle timely when the buzzer alarms.
Key words:- solar battery
- solar lithium battery
- Lifepo4 Solar Battery
- solar lithium ion battery
- solar energy storage battery
-
LiFePO4 Lithium-Ion Solar Battery Products Catalogue No. Series Model Voltage (V) Capacity （Ah） Watt Terminal Polarity Dimension (inch) Weight(KG) 001 Cylindrical cell CNLFP100-12 12.8 100 1305.6 LC4 + - 331*173*220 11.7 002 Cylindrical cell CNLFP120-12 12.8 120 1536 LC4 + - 331*173*220 13.8 003 Cylindrical cell CNLFP150-12 12.8 150 1958.4 LC4 + - 484*170*241 17.9 004 Cylindrical cell CNLFP200-12 12.8 200 2624 LC4 + - 484*170*241 23.0 005 Cylindrical cell CNLFP50-24 25.6 50 1336.32 LC4 + - 331*173*220 11.3 006 Cylindrical cell CNLFP100-24 25.6 100 2560 LC4 + - 484*170*241 22.1 007 Cylindrical cell CNLFP120-24 25.6 100 3072 LC4 + - 522*240*218 26.3 008 Cylindrical cell（DS） CNLFP100-12(DS) 12.8 100 1305.6 LC4 + - 331*173*220 11.3 009 Cylindrical cell（DS） CNLFP120-12(DS) 12.8 120 1536 LC4 + - 331*173*220 13.8 010 Cylindrical cell（DS） CNLFP150-12(DS) 12.8 150 1958.4 LC4 + - 484*170*241 17.9 011 Cylindrical cell（DS） CNLFP200-12(DS) 12.8 200 2624 LC4 + - 484*170*241 22.2 012 Cylindrical cell（DS） CNLFP50-24(DS) 25.6 50 1228.8 LC4 + - 331*173*220 11.3 013 Cylindrical cell（DS） CNLFP100-24(DS) 25.6 100 2560 LC4 + - 484*170*241 22.1 014 Cylindrical cell（DS） CNLFP120-24(DS) 25.6 100 3072 LC4 + - 522*240*218 26.3 015 Square aluminum shell cell（DS） CNLFP100-12(DS)-F 12.8 100 1280 LC4 + - 331*173*220 11.2 016 Square aluminum shell cell（DS） CNLFP100-12(DS)-F/B 12.8 100 1280 LC4 + - 260*168*209 11.2 017 Square aluminum shell cell（DS） CNLFP120-12(DS)-F 12.8 120 1612.8 LC4 + - 331*173*220 12.8 018 Square aluminum shell cell（DS） CNLFP150-12(DS)-F 12.8 150 1920 LC4 + - 484*170*241 14.3 019 Square aluminum shell cell（DS） CNLFP200-12(DS)-F 12.8 200 2624 LC4 + - 484*170*241/331*173*220 19.3 020 Square aluminum shell cell（DS） CNLFP200-12(DS)-F/B 12.8 200 2560 LC4 + - 484*170*241 19.3 021 Square aluminum shell cell CNLFP100-24-F 25.6 100 2560 LC5 + - 532*207*215 20.5 022 Square aluminum shell cell CNLFP120-24-F 25.6 120 3072 LC5 + - 532*207*215 22.0 023 Square aluminum shell cell CNLFP150-24-F 25.6 150 3840 LC5 - + 522*240*222 30.5 024 Square aluminum shell cell CNLFP100-38.4-F 38.4 100 3840 LC5 + - 525*400*210 29.8
